RAISED FLOOR SYSTEM is obtained second floor on the building floor. This space between two floor can be used for electricity and internet cables, air condition, heating pipes etc. If need reparing for these pipes or cable then you can reach easily. After repair then mount the floor easily.

Installation can be made as below pannels and pedestals
Pannels Types :
- Encapsulated Pannels
- Laminated Pannels
- Vinyl Laminated Pannels


- Encapsulated Pannels : Body of the pannel (* Body of the pannels are 30mm / 38mm thickness hardboar) is covered by Galvanised Steel or Aluminum Foil. Aluminium Foil is cheaper. Galvanised Steel is more stronger. According to customer demand both type can be supplied.

 GL502EN                              AF052


CODE	TOP SIDE COVERING	BOTTOM	Edge	Fire Retandart	Weight of pannel
GL502EN	0,4mm Galvanised Steel	0,4mm Galvanised Steel	Steel	30 Min	9,3 KG
AF052	0,05mm Aluminium Foil	0,05mm Aluminium Foil	Hard PVC	15 min	7,0 KG

* Body of the pannels are 30mm or 38mm thickness hardboard




- Laminated Pannels : Top of the pannel is covered laminated by 1mm Thickness HPL (High Pressure Laminate). Bottom is covered by Aluminum foil or galvanised steel. Edges are covered by hard PVC.




   F051L                                     GL501L


CODE	TOP SIDE COVERING	BOTTOM	Edge	Fire Retandart	Weight of pannel
AF051	1mm HPL (High Pressure Laminate)	50 Micron Aluminium  Foil	Hard PVC	15 min	7,4 KG
GL501L	1mm HPL (High Pressure Laminate)	0,4mm Galvanised Steel	Hard PVC	30 min	8,4 KG

* Body of the pannels are 30mm or 38mm thickness hardboard
http://www.gentas.com.tr/TR,342/ahsap-desenler.html  You can choose the patterns of the surface from this link.



- Vinyl Laminated Pannels : Top of the pannel is covered by Homogen or Heterogen PVC. Bottom is covered by Aluminum foil or galvanised steel. Edges are covered by hard PVC. You can see the patterns of the PVC below;

 AF051V                           GL501V


CODE	TOP SIDE COVERING	BOTTOM	Edge	Fire Retandart	Weight of pannel
GL501V / HT	2mm thickness Heterogen PVC	0,4mm Galvanised Steel	Hard PVC	30 min	8,4 KG
AF051V / HT	2mm thickness Heterogen PVC	50 Micron Aluminium  Foil	Hard PVC	15 min	7,4 KG
GL501V / HM	2mm thickness Homogen PVC	0,4mm Galvanised Steel	Hard PVC	30 min	8,4 KG
AF051V / HM	2mm thickness Homogen PVC	50 Micron Aluminium  Foil	Hard PVC	15 min	7,4 KG

* Body of the pannels are 30mm or 38mm thickness hardboard

HOMOGEN PVC PATTERNS

                                                             HETEROGEN PVC PATTERNS

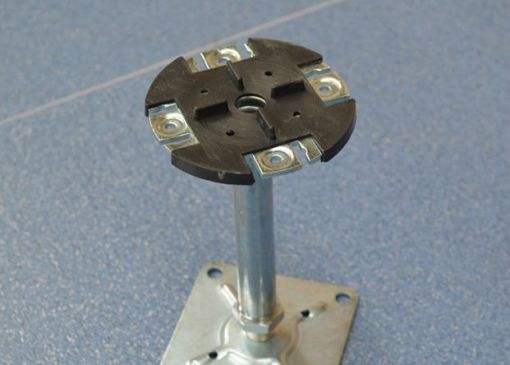

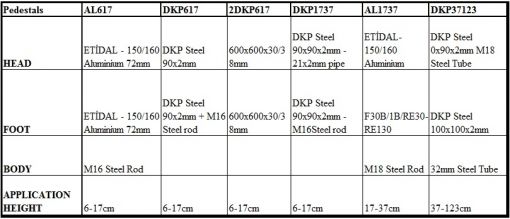

PEDESTALS :

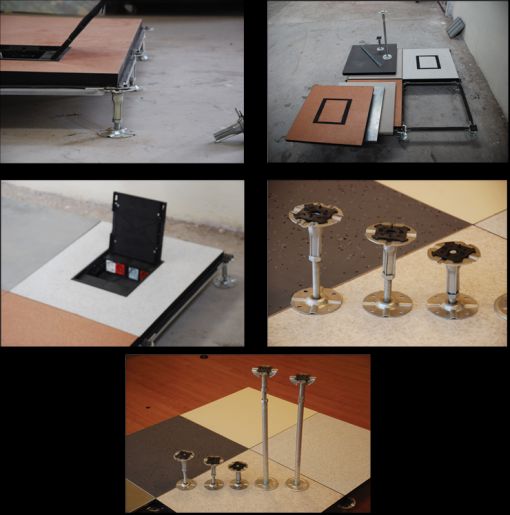

- Accessories :

Application Without Stringers : Pannels are put on the pedestals directly. Pedestals are sticked to the floor by the strong glue. Height can be adjusted by the way flat surface can be obtianed.

Application With Stringers : Pannels are put on the pedestals and stringers. By the stringers; floor strength will be increased, horizantal fixing will be obtained, distance between raised floor and floor has a natural air conditioning funtion.   Pedestals are sticked to the floor by the strong glue. Height can be adjusted by the way flat surface can be obtianed. Stringers are adviced especially if there is moving horizantally and raised floor height is more than 200mm.
